Researchers Reinvent the Wheel for Vehicles of the Future

Shape-Shifting Tires, Digital Driving Assistants Could Enable Safe Driving Over All Kinds of Terrain

Monday, October 29, 2018 - by Byron Spice

NREC has developed a vehicle with wheels that transform into tracks on the fly and a digital assistant that helps drivers find the safest, surest route across steep terrain as part of DARPA's Ground X-Vehicle Technologies program.

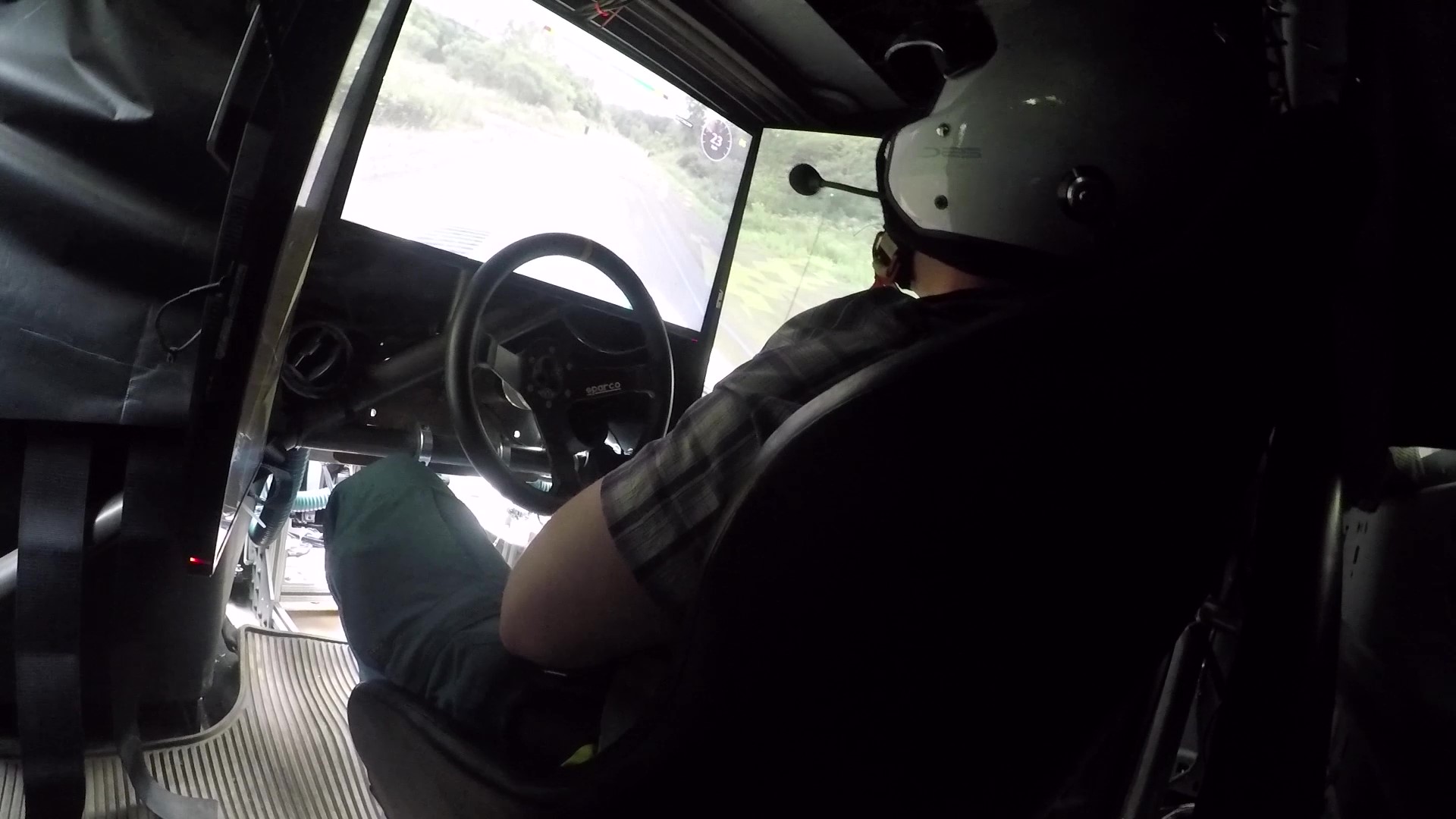

Wheels that transform into tracks on the fly and a digital assistant that helps drivers find the safest, surest route across steep terrain — or even does the driving at times — are technologies that could change expectations of what vehicles can do. Both this reinvention of the wheel and creation of a hybrid human/computer driver were accomplished at Carnegie Mellon University's National Robotics Engineering Center as part of a Defense Advanced Research Projects Agency (DARPA) program called Ground X-Vehicle Technologies, or GXV-T.

Shape-Changing Wheel Technology Could Do "Amazing Things"

The reconfigurable wheel-track can function as either a wheel or a triangular track to enable vehicles to operate at high speed on roads, or to traverse diverse off-road terrains. It can transform from one mode to the other in less than two seconds while the vehicle is in motion.

"This shape-changing locomotion technology could enable vehicles to tackle a wide array of terrains at surprising speed," said Dimi Apostolopoulos, a CMU Robotics Institute senior systems scientist who led the project at NREC. "Based on the testing we've done so far, we would expect such a vehicle to do amazing things."

DARPA's GVX-T program aims to reduce the need for armor by making combat vehicles faster, more maneuverable and capable of operating in a wide variety of environments. Apostolopoulos said the shape-shifting wheel-track has a number of potential civilian applications as well, including uses in forestry, mining and construction, and heavy equipment.

In testing to date, vehicles equipped with the reconfigurable wheel-track have achieved 50 miles an hour in wheel mode and almost 30 mph in track mode. The device has transformed from wheel mode to track mode at speeds as high as 25 mph and from track mode to wheel mode at speeds of around 12 mph.

The core of the wheel-track concept is to adjust the size of the contact patch — the area of the wheel-track in contact with the ground — based on surface type and wheel loading. By reducing the contact patch on smooth surfaces, it is possible to achieve higher speeds. Increasing the contact patch maximizes traction, much like a snowshoe, and enables the vehicle to maneuver safely on soft soils. Today's Humvees do something similar by increasing tire pressure on smooth, dry surfaces and reducing tire pressure in off-road situations, Apostolopoulos said.

Other groups have done something similar to NREC's reconfigurable wheel-track, though those previous efforts usually have required halting the vehicle to transform from one mode to the other, Apostolopoulos noted. The ability to make these transformations on the fly, he added, is a critical requirement for vehicles that must handle changing terrain at high speed.

The reconfigurable wheel-track has a rubberized tread that sits atop a frame that can change shape. An early version used electric motors to change the shape of the frame, but the researchers soon realized they could transform the shape passively, using the speed of the wheel-track itself to power the shape change, rather than the complicated system of motors.

In its latest manifestation, the spinning wheel is transformed into a track by extending a Y-shaped support, which pushes the frame into a triangular shape. Simultaneously, application of a brake to stop the wheel from spinning causes the transmission to automatically shift from turning the wheel to turning a set of gears that drives the track.
